PRODUCT

  • Shinil Pharm Glass Ampoule

    Precise cutting technology facilitates cutting.

  • Various ampoules available

    Ampoules with various inlet shapes can be made.

  • Unique production technology

    We solely hold double ampoule production technology.

  • OPTICOM SYSTEM

    We use an advanced manufacturing facility-Opticom system.

  • Use of a low oxygen burner

    Less alkali elution by using a low oxygen burner developed by our company.

  • Silk screen printing

    Excellent printing quality with silk screen printing, various colors printing available.

PRODUCT INTRODUCTION

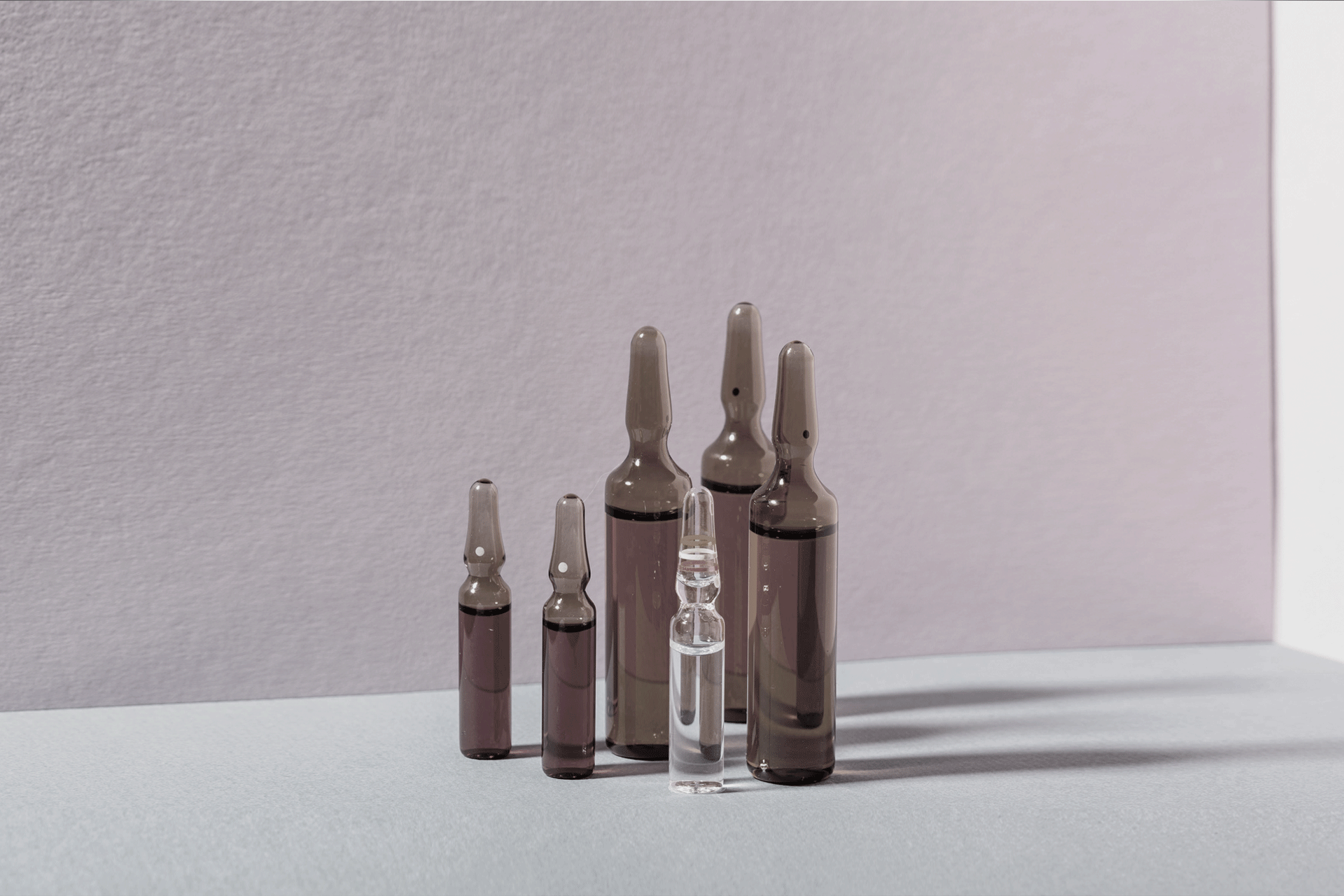

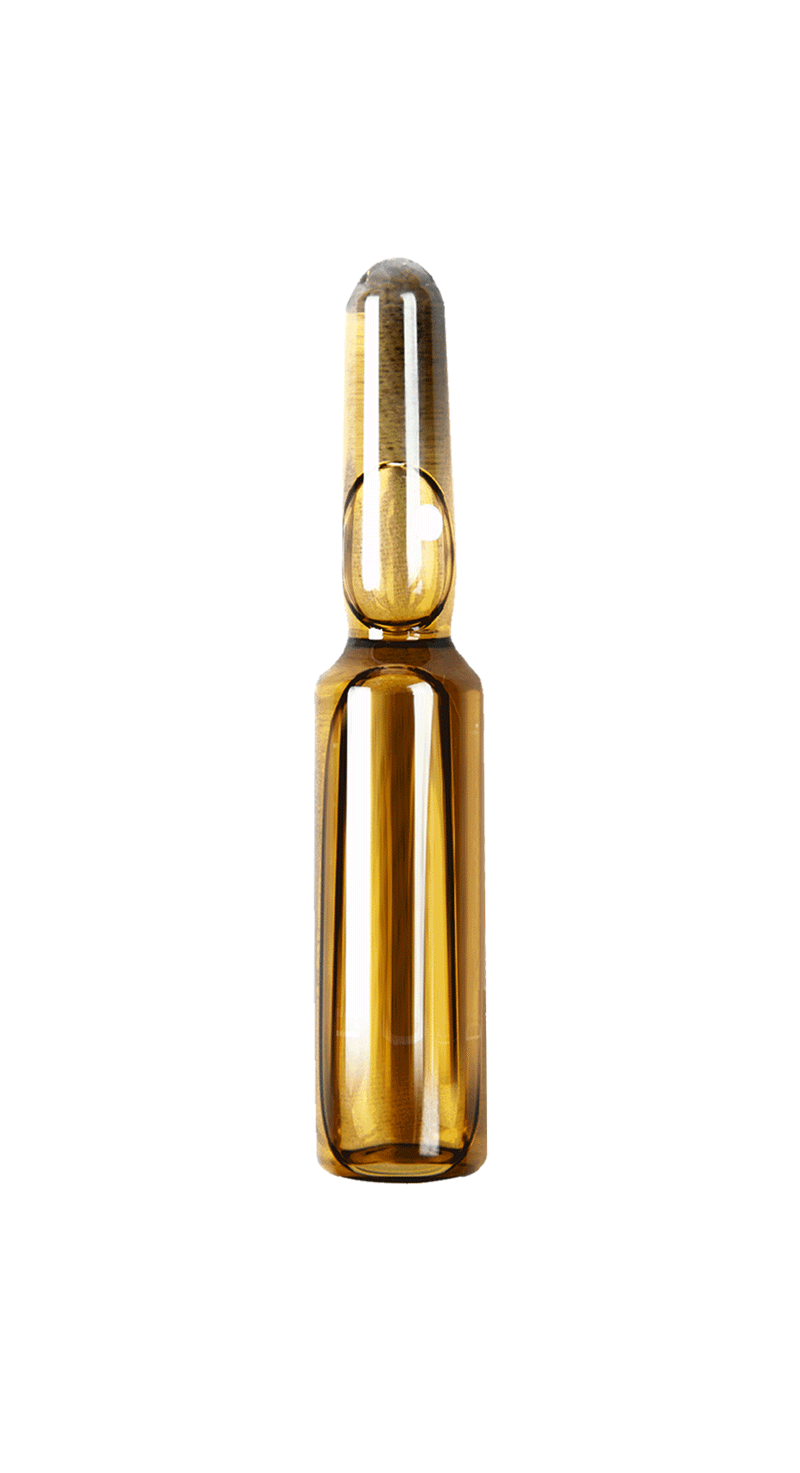

AMPOULE


All Shinil Pharm Galss Co., Ltd. ampoules have an advantage of being easily cut by applying accurate cutting technology. Advanced manufacturing facility “Opticom system” automatically controls burner flame depending on outer diameter deviation of a glass tube and ambient work environment change. Advanced cutting machine “Opticut system” allows the control of one point position depending on the ampoule neck deviation, resulting in uniform strength of the cut point.

Excellent cleaniness

Ampoules can be used for medical, cosmetic and food containers. Perfect sterilization is possible for excellent cleanliness on ampoule inside and outside.

Variable inlet Shapes

Variable inlet shapes are available: straight, trumpet, closed shapes

Double Ampoule

We solely hold double ampoule production technology. The quality and strength are excellent.




One-point ampoule specifications and units





ml
Volume		 d1
An external diameter		 d2
Hwanel		 d3
Thickness		 d4
Head		 d5
Neck		 h1
The whole length		 h2
The length		 S1
Tube thickness
1 10.0 6.8 5.5 7.3 6.3 68.0 27.0 0.45
1 11.2 7.3 5.7 7.5 6.4 68.0 27.5 0.68
2 11.2 7.5 5.7 7.5 6.5 75.0 34.5 0.68
3 11.2 7.5 5.7 7.5 6.5 86.0 48.0 0.68
3 15.0 8.0 6.5 8.5 7.5 75.0 34.0 0.50
5 15.0 8.0 6.5 8.5 7.5 86.0 46.0 0.50
5 17.0 9.0 7.5 9.0 8.0 85.0 40.0 0.50
10 17.0 8.5 7.0 9.0 8.0 109.0 63.0 0.50
12 22.5 10.5 7.5 11.5 9.0 100.0 55.0 0.70
20 22.5 10.5 7.5 11.5 9.0 120.0 74.0 0.70
24 22.5 11.0 7.5 12.0 9.0 160.0 80.0 0.70

*The specifications shown in the table are our representative standards,
and the rest of the specifications can be adjusted after consultation
except for d1 (outdoor diameter) s1 (head thickness)







Double ampoule specifications and units





ml
Volume		 d1
The externel diameter		 d2
Volume		 h1
The whole length		 h2
The length		 s1
Tube thickness
5 12.55 1.7 94.5 48.0 0.45
7 15.65 2.0 94.5 45.0 0.53
10 15.65 2.0 111.5 62.0 0.53
15 19.25 2.3 118.5 59.5 0.55
20 19.25 2.3 134.5 79.0 0.55

*The specifications shown in the table are our representative standards,
and the rest of the specifications can be adjusted after consultation
except for d1 (outdoor diameter) s1 (head thickness)



STERILIZABLE

The inside and outside of the ampoule are clean and fully sterilized.

DOUBLE AMPOULE

We solely hold double ampoule production technology in the country.

EFFECTIVE

We developed a low oxygen burner and Alkali elution of an ampoule is very low.

ACCURATE CUTTING

Shinil Pharm Glass's ampoule is easily cut with the correct cutting technique.

VARIOUS COLORED

According to customer demand, various colored, clear and clean silk screen printing is possible.

VARIOUS

Ampoules can be used for medical, cosmetic, food and various field containers.
